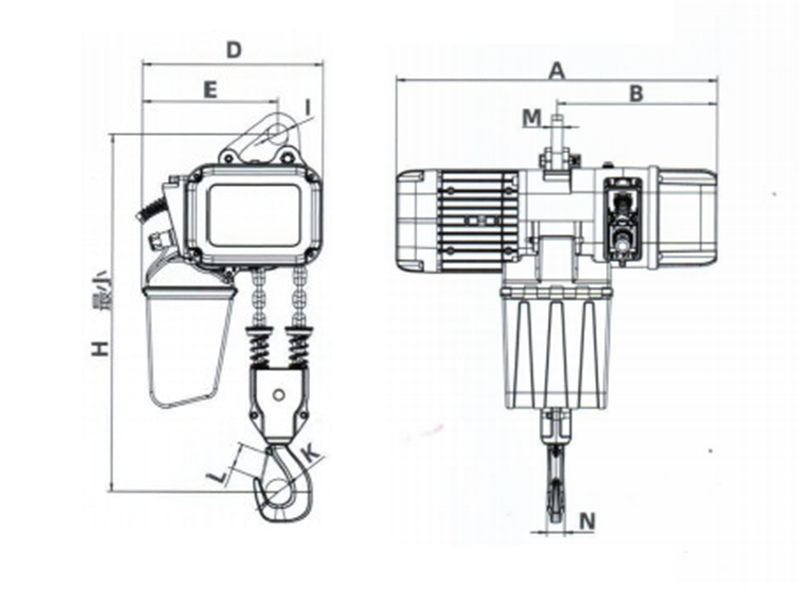

Length(mm)

H

550

A

590

B

276

D

330

210

38

M

20

N

35

K

52

42

MODEL

DCER 02-02

DCER 1/DCER 2

DCER 3

DCER 4

Maximum load(≤6m/h)

2.3 t

Rated load(Ton)(≤6m/h)

2 t

Lifting speed(m/min)

Single speed 3.4

Dual speed 1.1/3.4

Frequency conversion 0.4~3.4

Motor Power(kw)

Single speed 1.5

Dual speed 0.6/1.5

Frequency conversion 1.5

Rotation speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Motor insulation class

Frequency(Hz)

50

Power Supply

Ac380v L1 L2 L3

Control Voltage

AC36V

N0.ofLoad Chain

Spec.ofLoad Chain

71x21

Working level

M5
