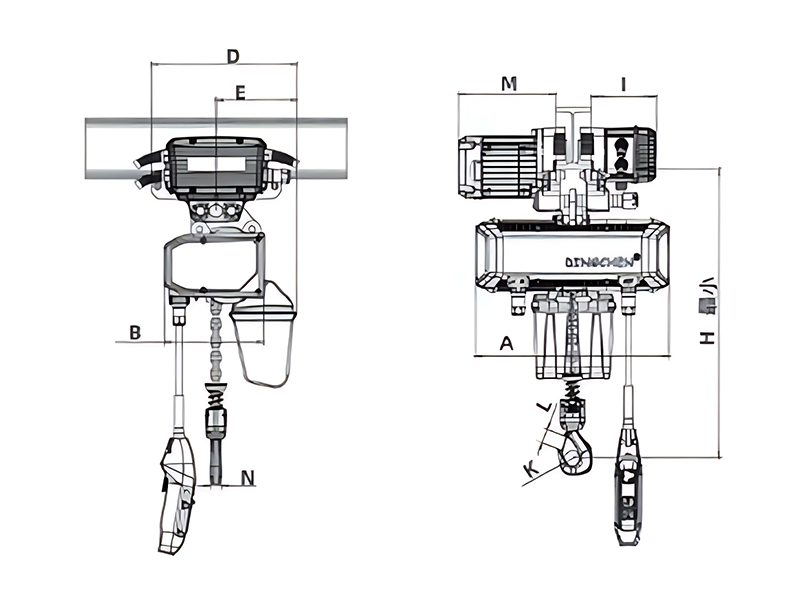

Length (mm)

H

473

A

440

B

230

D

305

E

186

147

M

222

N

20

K

35

31

MODEL

DCEK 0.5-01

DCEK1/DCEK2

DCEK3

DCEK4

Maximum load(≤6m/h)

0.6t

Rated load(Ton)(≤6m/h)

0.5t

Lifting speed(m/min)

Single speed 8

Dual speed 2.5/8

Frequency conversion 1~8

Lifting motor power(kw)

Single speed 0.75

Dual speed 0.26/0.75

Frequency conversion 0.75

Lifting motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed(m/min)

Single speed 11

Dual speed 3.6/11

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Runningmotor power(kw)

Single speed 0.25

Dual speed 0.1/0.25

Frequency conversion 0.25

Motor insulation class

F

Frequency(Hz)

50

Power Supply

Ac380V L1 L2 L3

Control Voltage

AC36v

N0.ofLoad Chain

Spec.ofLoad Chain

6.3x19

Working level

M5

I-Beam(mm)

52-153
