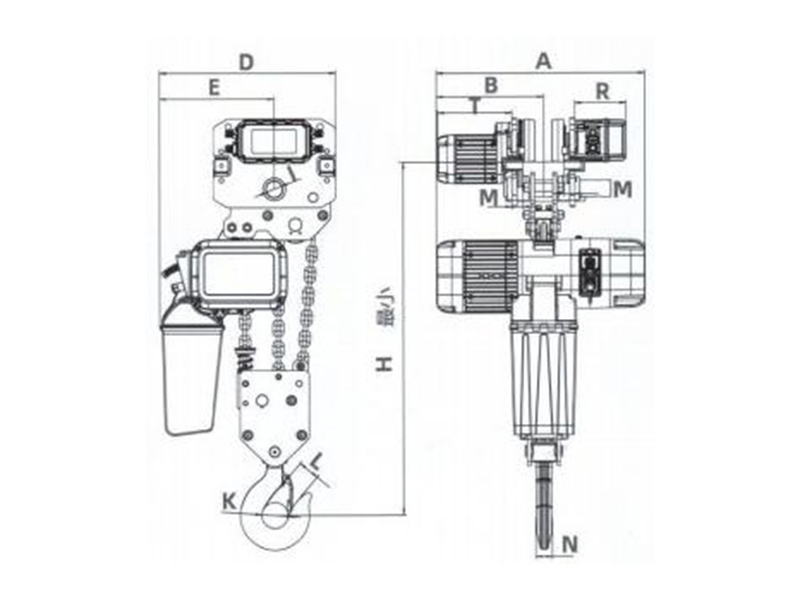

Length(mm)

H

1020

A

681

B

350

D

576

E

375

54

M

35

N

48

K

85

L

80

T

242

R

167

MODEL

DCER 7.5-03

DCER 1/DCER 2

DCER3

DCER4

Maximum load(≤6m/h)

8.5t

Rated load(Ton)(≤6m/h)

7.5t

Lifting speed(m/min)

Single speed 1.8

Dual speed 0.5/1.8

Frequency conversion 0.3~1.8

Lifting motor power(kw)

Single speed 3

Dual speed 1.1/3

Frequency conversion 3

Lifting motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed(m/min)

Single speed 11

Dual speed 3.6/11

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running motor power(kw)

Single speed 0.75

Dual speed 0.3/0.75

Frequency conversion 0.75

Motor insulation class

Frequency(Hz)

50

Power Supply

Ac380v L1 L2 L3

Control Voltage

AC36V

N0.ofLoad Chain

Spec.ofLoad Chain

11.2x34

Working level

M5

I-Beam(mm)

100-178
