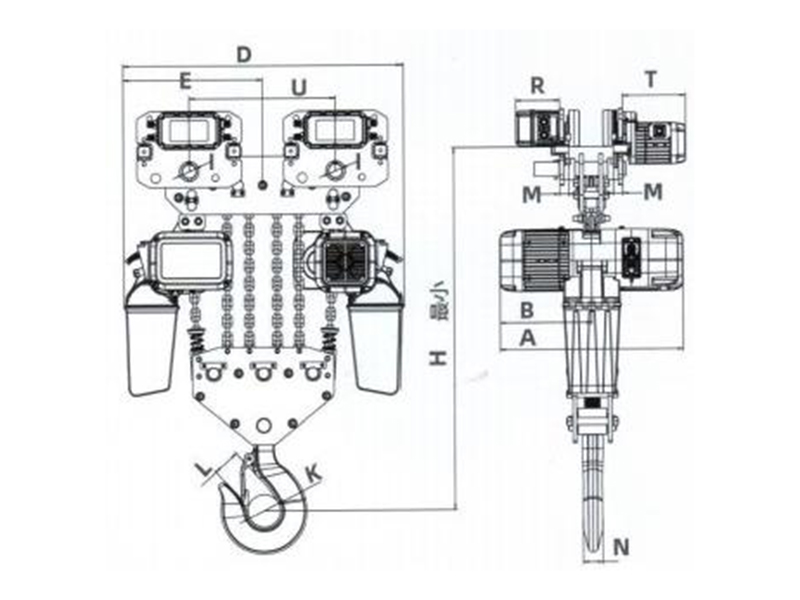

Length (mm)

H

1240

A

700

B

350

D

920

E

460

54

M

35

N

80

K

120

L

96

T

242

R

167

MODEL

DCER 15-06

DCER1/DCER2

pCER3

DCER4

Maximum load(≤6m/h)

18t

Rated load(Ton)(≤6m/h)

15t

Lifting speed(m/min)

Single speed 1.8

Dual speed 0.5/1.8

Frequency conversion 0.25~1.8

Lifting motor power(kw)

Single speed 3x2

Dual speed 1.1/3x2

Frequency conversion 3x2

Lifting motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed(m/min)

Single speed 11

Dual speed 3.6/11

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running motor power(kw)

Single speed 0.75×2

Dual speed 0.3/0.75x2

Frequency conversion 0.75x2

Motor insulation class

F

Frequency(Hz)

50

Power Supply

Ac380v L1 L2 L3

Control Voltage

AC36v

N0.ofLoad Chain

6

Spec.ofLoad Chain

11.2x34

Working level

M5

I-Beam(mm)

150-220*2
