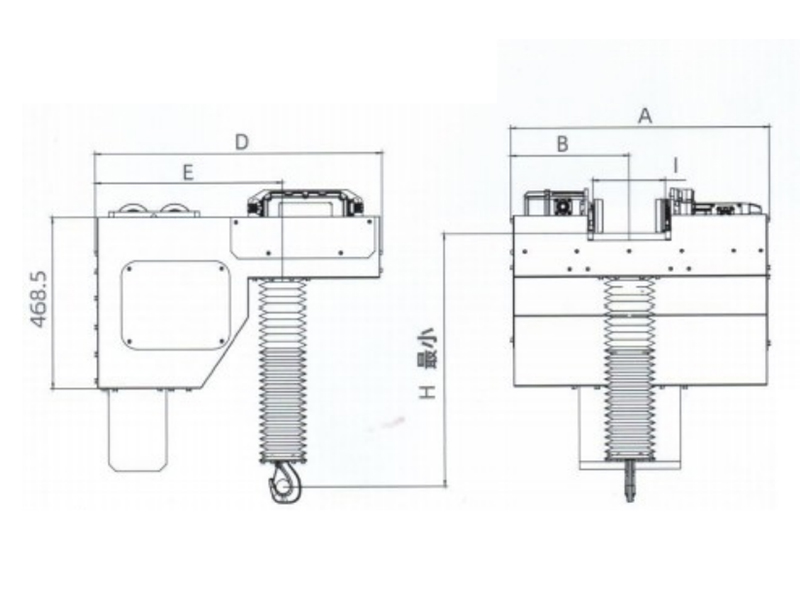

Length(mm)

H

Agreed

A

718

B

330

D

795

Agreed

M

469

N

25

K

42

L

32

MODEL

DCER 01-01

DCER 2

DCER3

DCER4

Maximum load

1.15t

Rated load(Ton)(≤6m/h)

it

Lifting speed(m/min)

Single speed 6.8

Dual speed 2.2/6.8

Frequency conversion 0.8~6.8

Lifting motor power(kw)

Single speed 1.5

Dual speed 0.6/1.5

Frequency conversion 1.5

Lifting motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed(m/min)

Single speed 11

Dual speed 3.6/11

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running motor power(kw)

Single speed 0.5

Dual speed 0.2/0.5

Frequency conversion 0.5

Motor insulation class

F

Frequency(Hz)

50

Power Supply

Ac380v L1 L2 L3

Control Voltage

AC36v

N0.ofLoad Chain

1

Spec.ofLoad Chain

7.1×21

Working level

M5

I-Beam(mm)

52-153
