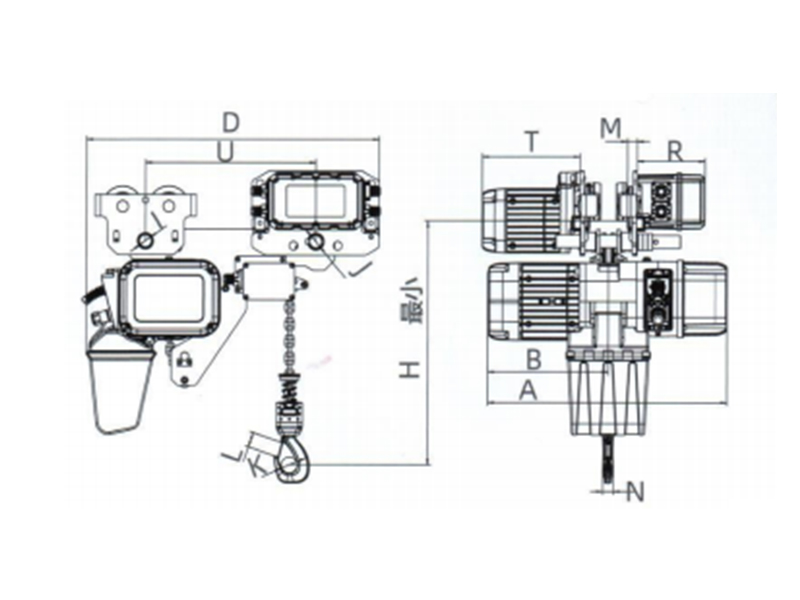

Length(mm)

H

470

A

681

B

350

D

865

U

514

31.5

36.5

M

28

N

35

K

52

L

42

T

242

R

167

MODEL

DCER 02-01

DCER 2

DCER3

DCER4

Maximum load(≤6m/h)

2.3t

Rated load(Ton)(≤6m/h)

2t

Lifting speed(m/min)

Single speed 9.2

Dual speed 2.8/9.2

Frequency conversion 1~9.2

Lifting motor power(kw)

Single speed 3.9

Dual speed 1.4/3.9

Frequency conversion 3.9

Liftingmotor speed (r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed(m/min)

Single speed 11

Dual speed 3.6/7

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running motor power(kw)

Single speed 0.5

Dual speed 0.2/0.5

Frequency conversion 0.5

Motor insulation class

Frequency(Hz)

50

Power Supply

Ac380v L1 L2 L3

Control Voltage

AC36v

N0.ofLoad Chain

Spec.ofLoad Chain

10x30

Working level

M5

I-Beam(mm)

82-178
