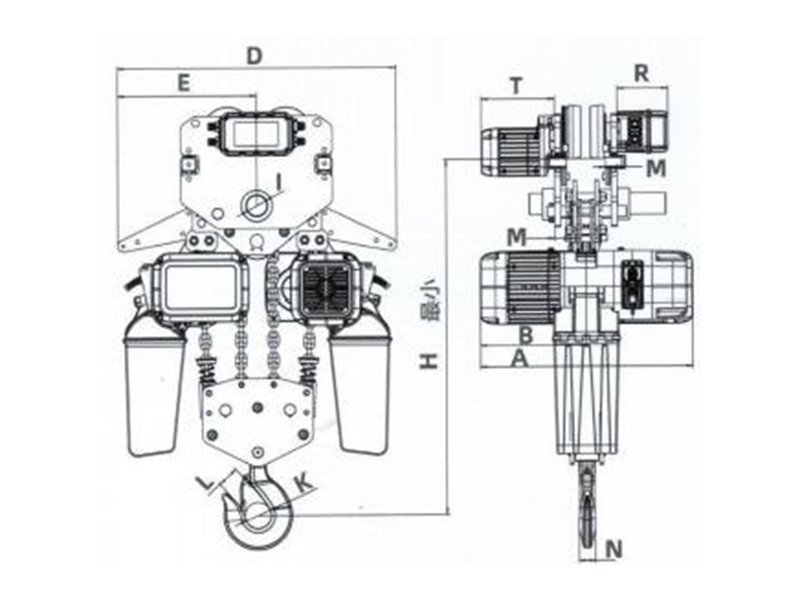

Length(mm)

H

1045

A

700

B

350

D

920

460

70

M

39

N

48

K

85

80

T

242

R

167

MODEL

DCER 10-04

DCER2

DCER3

DCER4

Maximum load(≤6m/h)

11.5t

Rated load(Ton)(s6m/h)

10t

Lifting speed(m/min)

Single speed 3.5

Dual speed 1.1/3.5

Frequency conversion 0.5~4.2

Lifting motor power(kw)

Single speed 3,9x2

Dual speed 1.4/3.9x2

Frequency conversion 4.5x2

Lifting motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed(m/min)

Single speed 11

Dual speed 3.6/11

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running motor power(kw)

Single speed 0.75

Dual speed 0.3/0.75

Frequency conversion 0.75

Motor insulation class

F

Frequency(Hz)

50

Power Supply

Ac380v L1 L2 L3

Control Voltage

AC36v

NO.ofLoad Chain

2

Spec.ofLoadChain

11.2X34

Working level

M5

I-Beam(mm)

100-178
