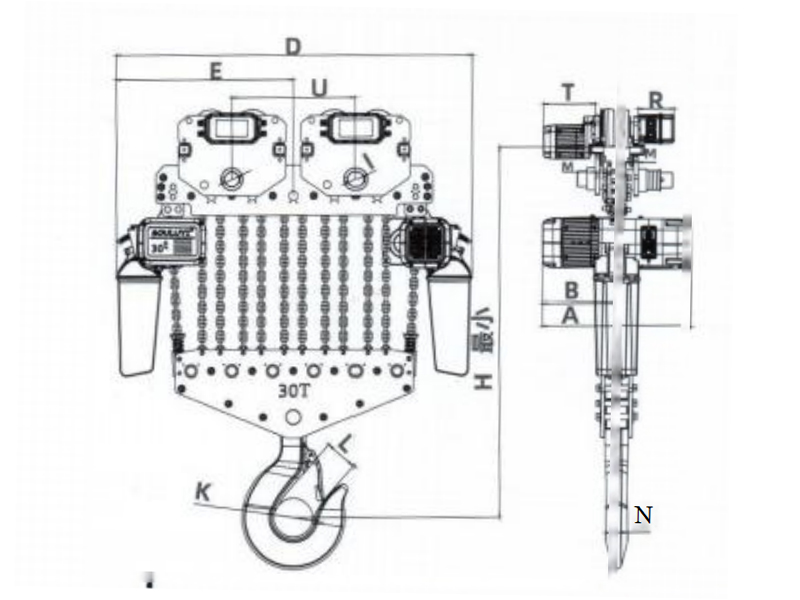

Length (mm)

H

1440

A

700

B

350

D

1645

E

822

70.5

M

40

N

120

K

140

L

95

T

242

R

167

MODEL

DCER 30-12

DCER 2

DCER3

DCER4

Maximum load(s6m/h

35t

Rated load(Ton)(≤6m/h)

30t

Lifting speed(m/min)

Single speed 1.16

Dual speed 0.35/1.16

Frequency conversion 0.15~1.4

Lifting motor power(kw)

Single speed 3.9×2

Dual speed 1.4/3.9x2

Frequency conversion 4.5×2

Lifting motor speed (r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running speed (m/min)

Single speed 11

Dual speed 3.6/11

Frequency conversion 1.5~12

Running motor speed(r/min)

Single speed 1440

Dual speed 430/1440

Frequency conversion 200~1440

Running motor power(kw)

Single speed 1.1X2

Dual speed 0.4/1.1x2

Frequency conversion 1.1X2

Motor insulation class

F

Frequency(Hz)

50

Power Supply

Ac380y L1 L2 L3 ⊥

Control Voltage

AC36v

NO.ofLoad Chain

12

Spec.ofLoad Chain

11.2x34

Working level

M5

I-Beam(mm)

150-220*2
