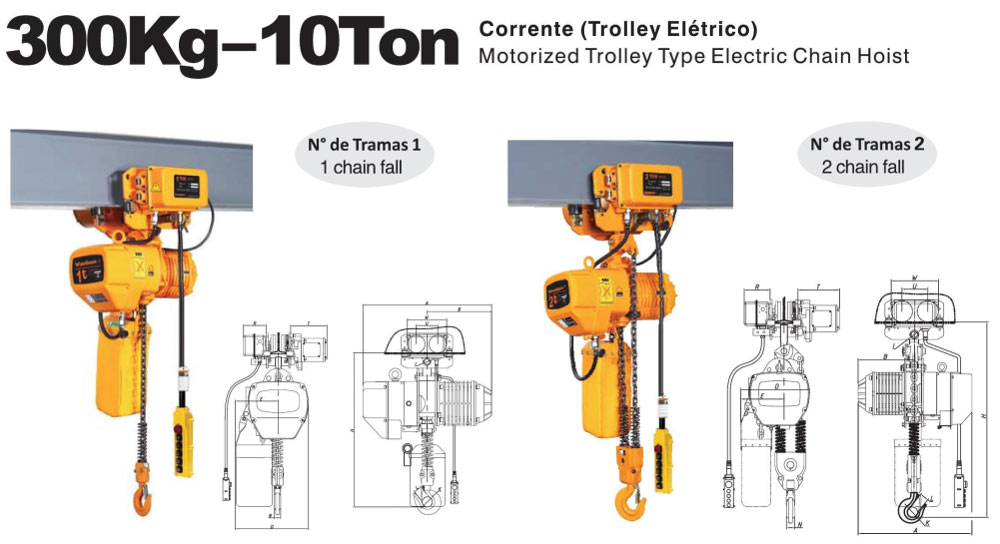

Electric chain hoist (VANBON)

Chain--FEC G80 chain hook-hot forging with perfect strength that is not easy to break.

Direct supply from the manufacturer: Order phone：+86-0510-86005215; E-mail：kitocrane@163.com

Detail

Features:

Shell-made of die-cast aluminum alloy, light but hard.
Motor-uses side electromagnetic series YEP brake motor.
Gear-alloy steel made by carburizing and quenching treatment. Therefore, low-noise and high-efficiency transmission is guaranteed.
Reverse sequence protection device-the control circuit does not work when the power supply wiring is wrong
Side electromagnetic brake device-brake immediately after cutting off the power.
Chain bag-lightweight, beautiful and durable.
Chain--FEC G80 chain hook-hot forging with perfect strength that is not easy to break.

technical parameter:

Types of		WBH-00501S	WBH-01001S	WBH-01501S	WBH-02001S	WBH-02501S	WBH-03001S
Capacity (tons)		0.5	1A	1.5	2A	2.5	3
Standard lifting height (m)		3
Lifting speed (m)		6.8	6.6	8.8	6.6	5.4	5.4
Lifting motor	Power (kw)	0.75	1.5	3	3	3	3
	Speed (r/min)	1440
	Phase	3
	Voltage (v)	200-440
	Frequency (Hz)	50
Running motor	Power (kw)	0.4	0.4	0.4	0.4	0.75	0.75
	Speed (r/min)	1440
	Working speed (m/min)	11/21
	Phase	3
	Voltage (v)	200-440
	Frequency (Hz)	50
Sprocket		1A
Chain specification		Ø6.3	Ø7.1	Ø10.0	Ø10.0	Ø11.2	Ø11.2
Test load (t)		0.625	1.25	1.875	2.5	3.125	3.75
Weight (kg）		47	61	108	115	116	122
I-beam (mm)		58-153	58-153	82-178	82-178	100-178	100-178
Weight increase by 1m (kg)		0.81	1.1	2.3	2.3	2.8	2.8
